- Drying system - Granules - Dehumidifier-scene
Product details:
一. Dehumidifying Dryer Series
Dehumidifying / Desiccant Dryers
Purpose:
Hygroscopic resins (in particular refers to as engineering plastics such as LCP, PC, TR90, PA, PET, etc.) are often used in injection molding, blowing and extrusion. If not treated properly (fully dried), such materials trapped water moisture within the granules, can negatively affect the final result and quality of the product with the risk of consistently producing defected parts. In order to avoid defects during plastic processing, TaiQiangTCM has developed precise, reliable and efficient dehumidifying dryers. Our range of desiccant drying unit.

(Energy-saving patent )

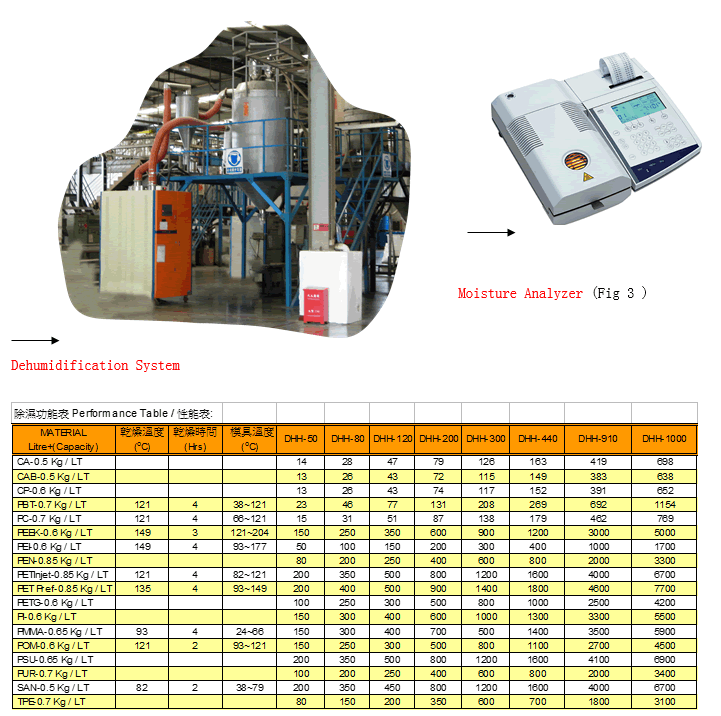

(Fig 1)                                         (Fig 2)
Single desiccant chamber/                    Multi-Hopper /

 Type:
① Single desiccant chamber
② Multi-Hopper


Options
    Dew-point meter
   Moisture Analyzer(Fig 3 )
   Oil Eliminator
   Touch Screen Controller
-Glossary
Dew-point:The temperature needed for vapor to transform into water. The lower the dew-point is, the less the moisture content will be. The less the moisture is, the better the result of dehumidifying will be.
Relative Humidity:The humidity at particular temperature, usually indicated by percentage
